SKU:AU-L03NKEU10KW-1

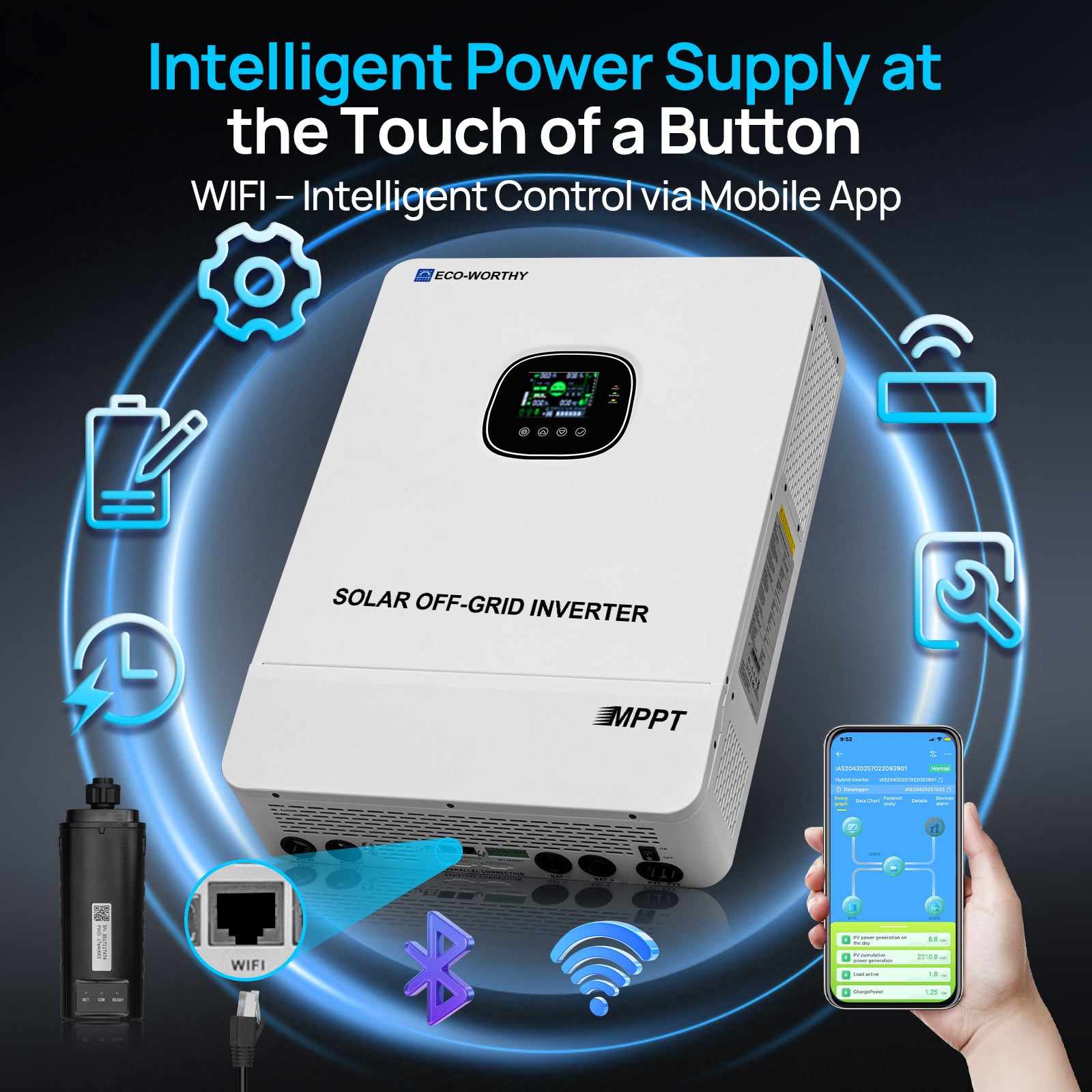

[Intelligent Control & Wide Compatibility] Connect via Bluetooth or Wi-Fi for convenient system management. Compatible with ECO-WORTHY 48V batteries and most LiFePO4 batteries on the market for both charging and communication.

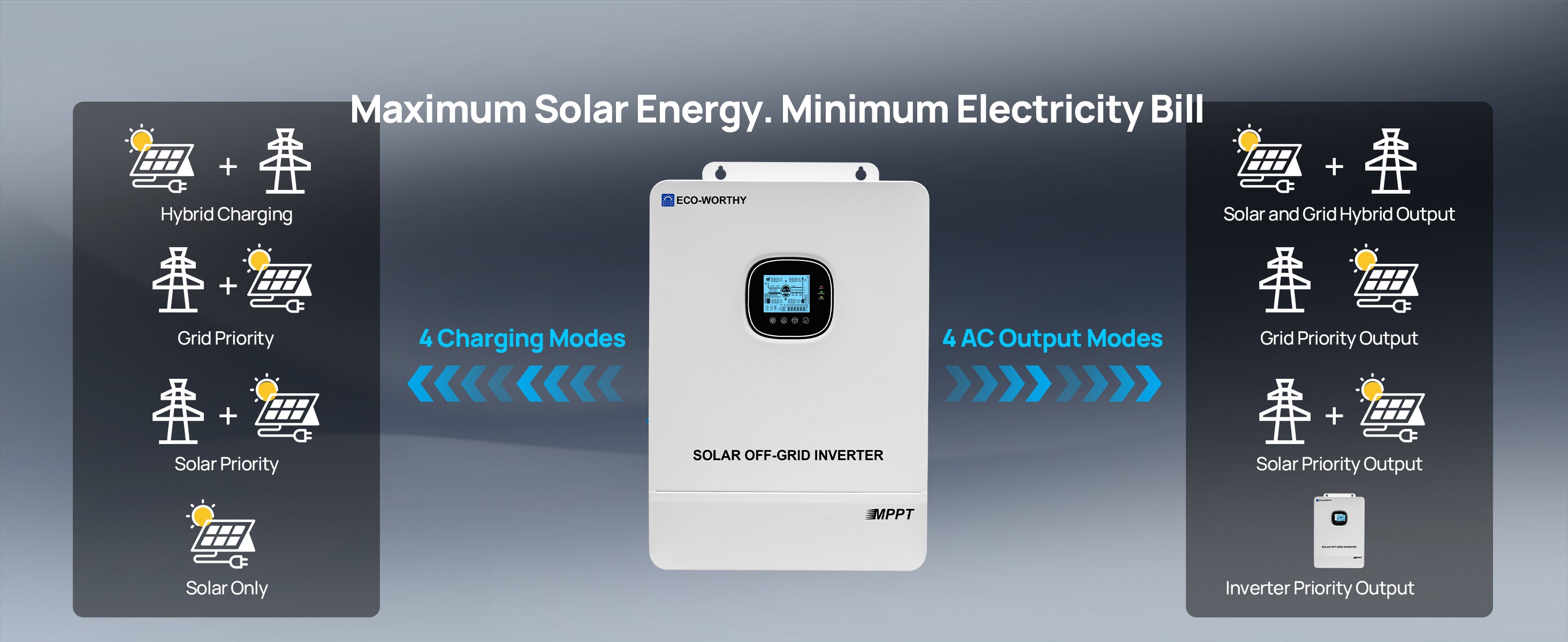

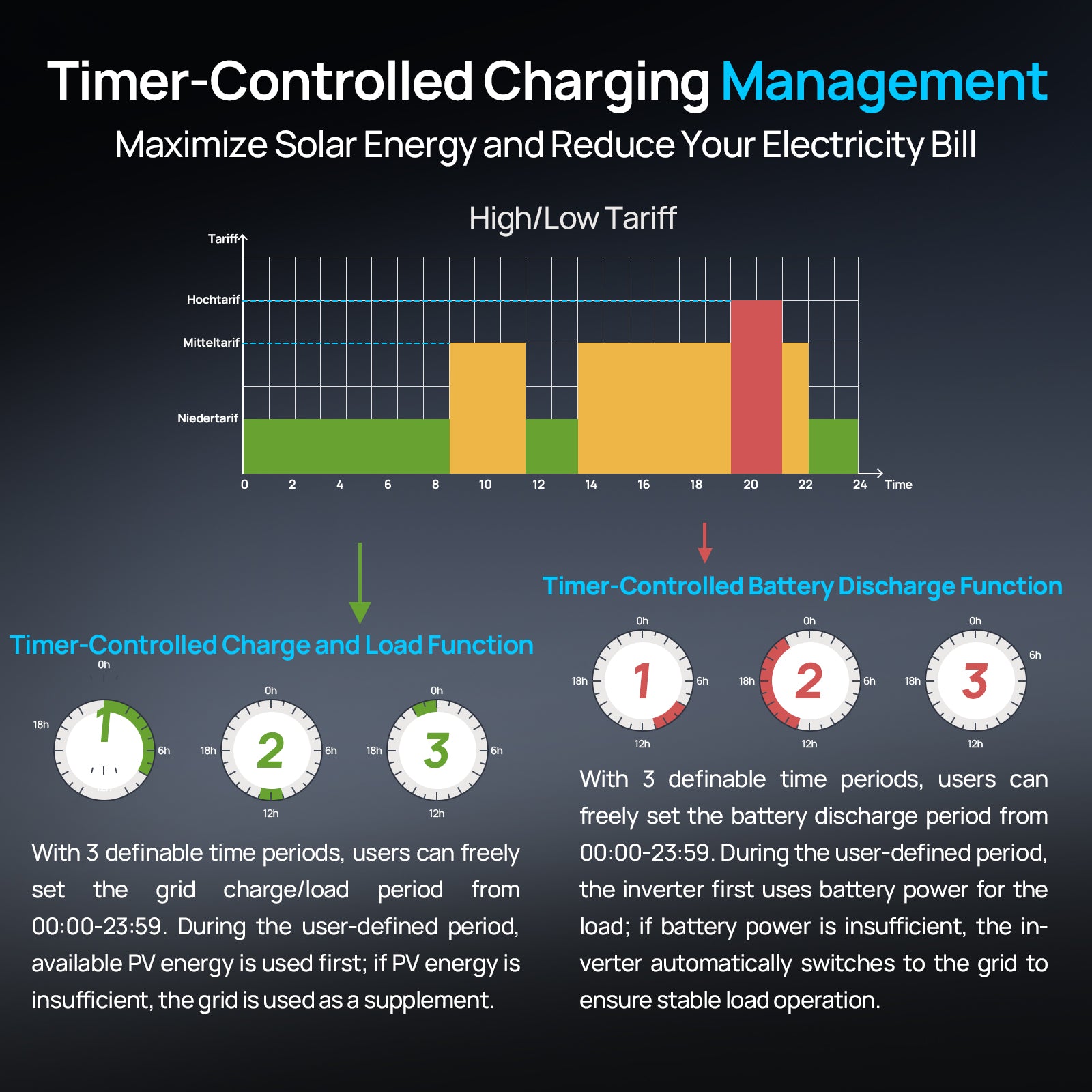

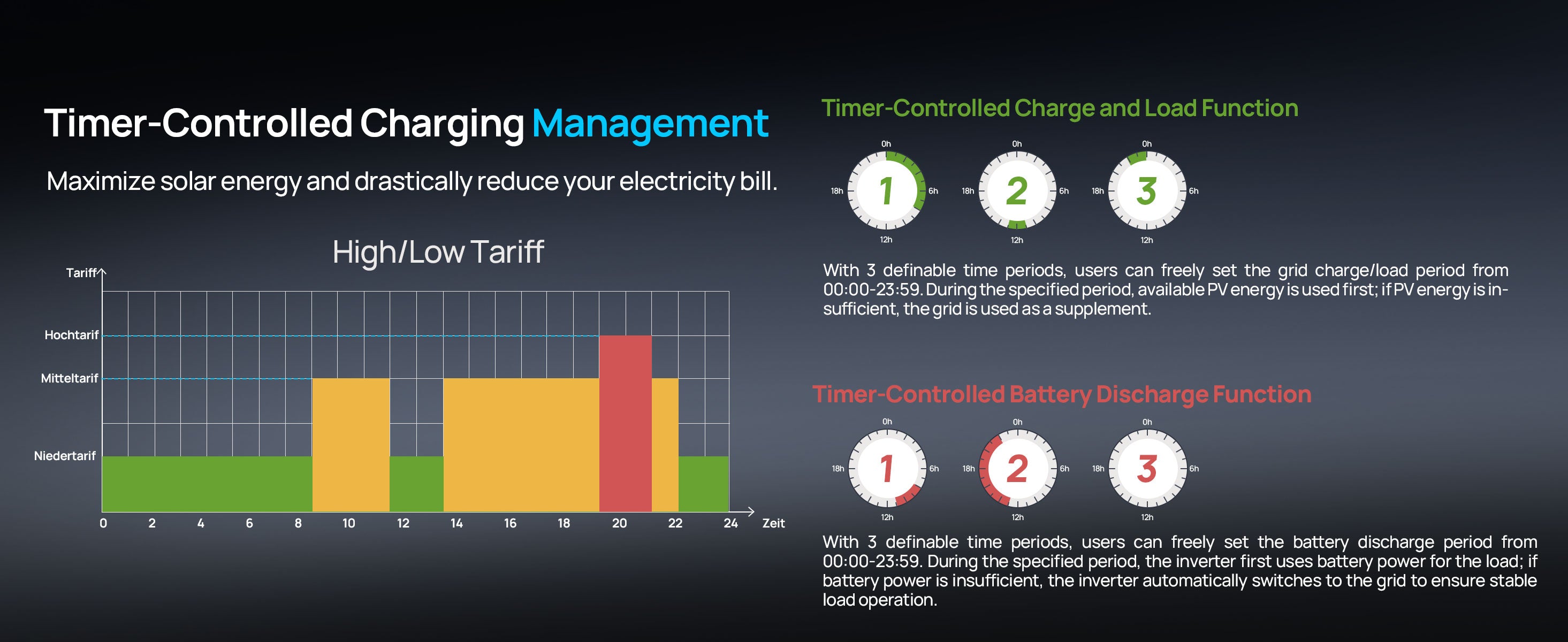

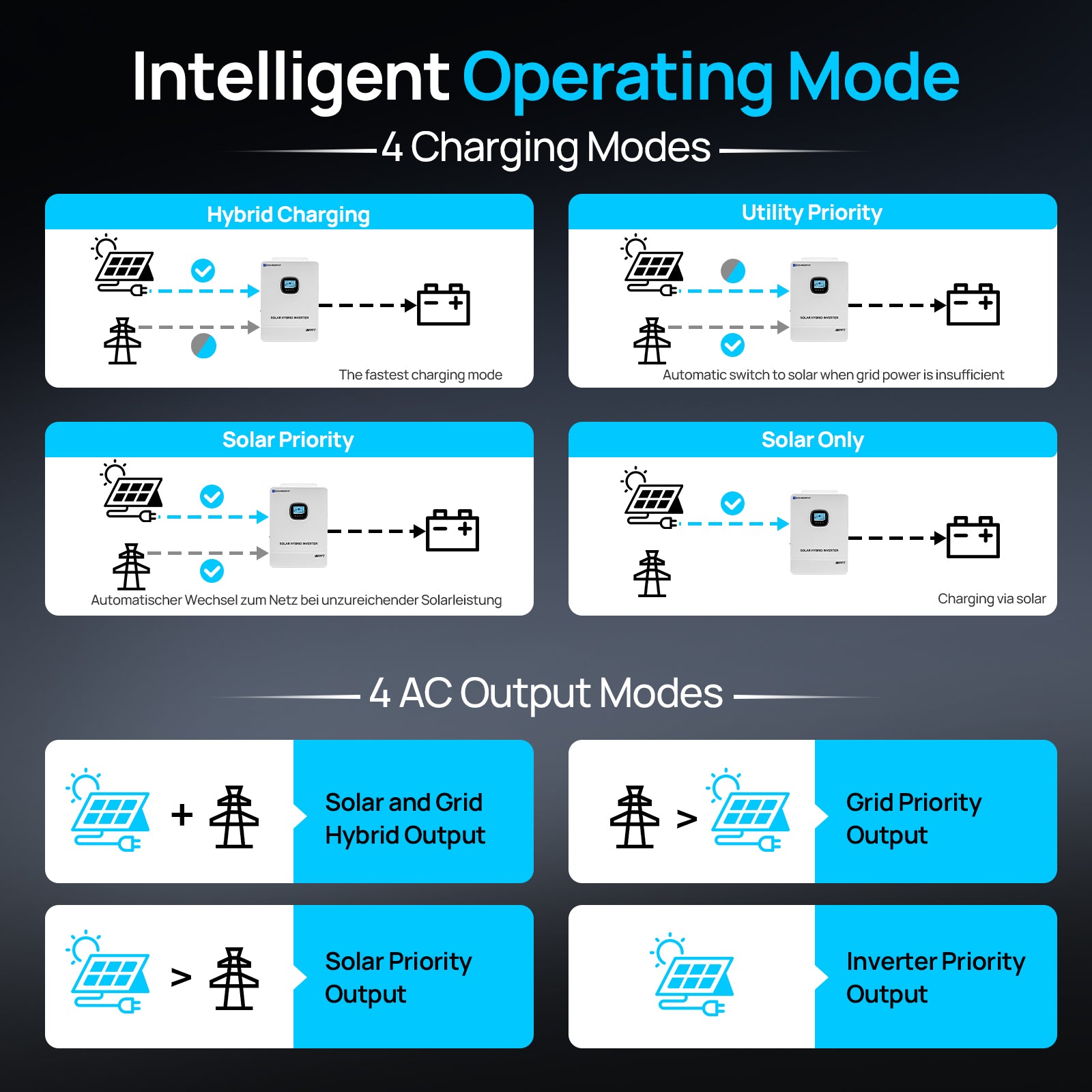

[Smart Charging & Discharging Management] Features 3 output modes and 4 charging modes with customizable time-based scheduling to optimize energy usage and reduce grid electricity costs.

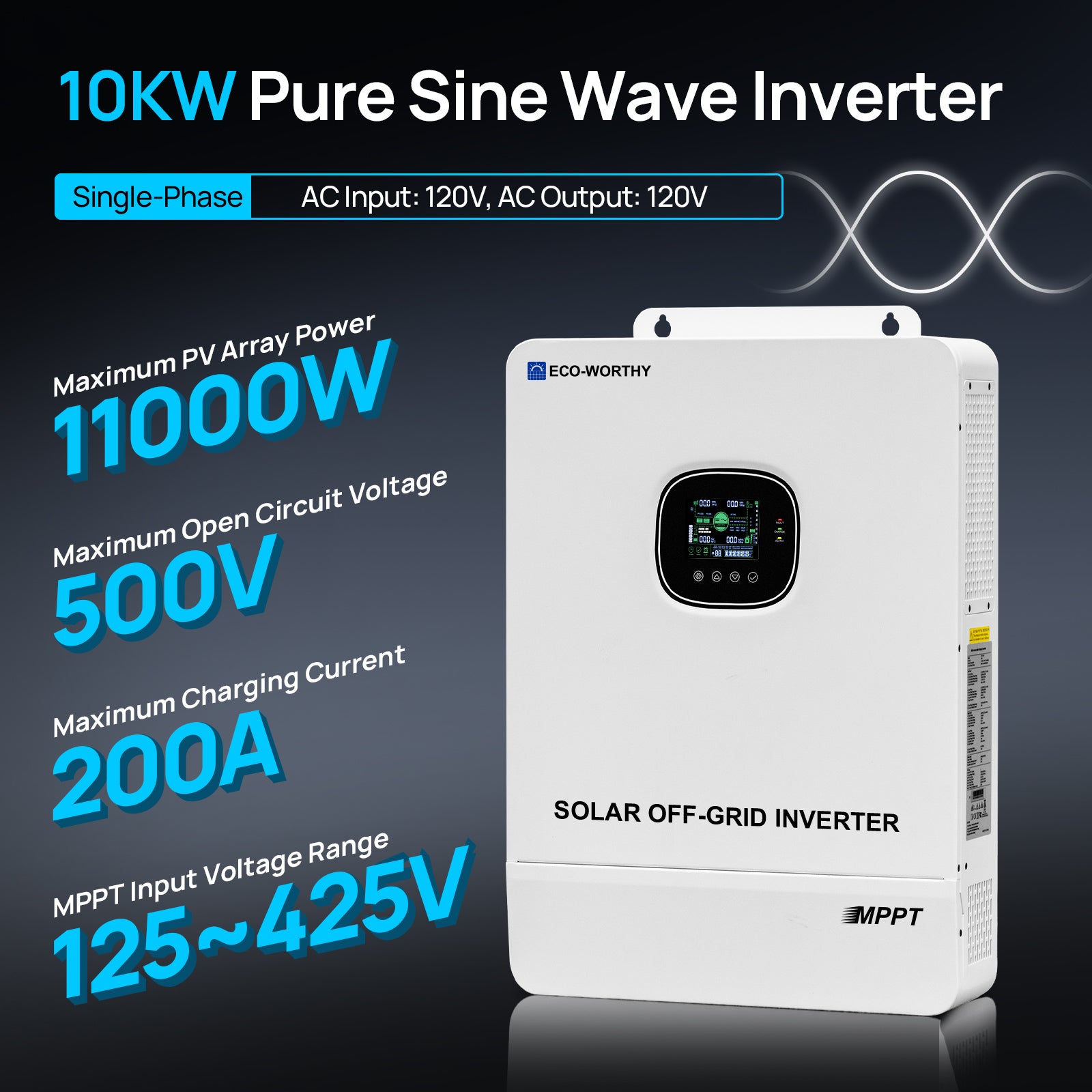

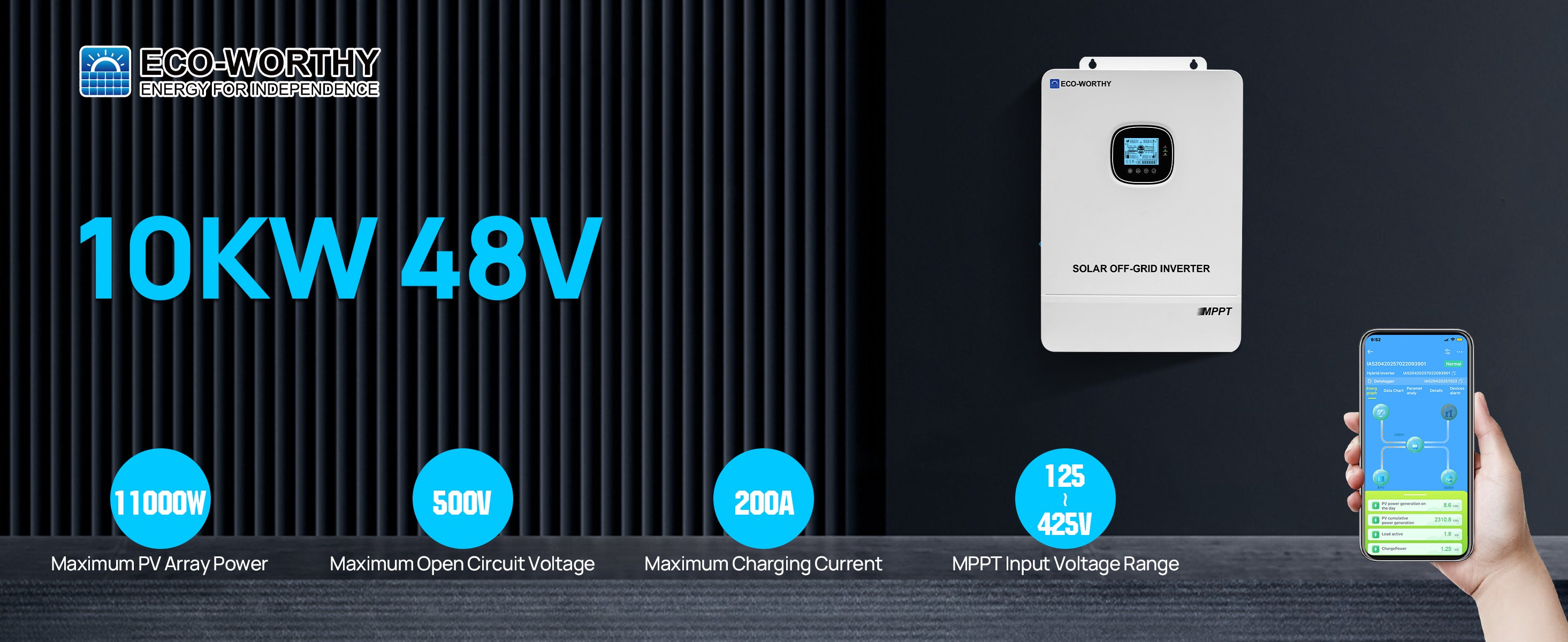

[Technical Specifications] Dual MPPT design with up to 5500W PV input power per channel, 120–500V DC input range, 80A MPPT charging current, 5000W rated output power, and 10,000W peak power.
[Battery-Free Operation] Operates without battery input by directly using PV DC power to continuously supply connected loads, making it ideal for flexible solar power systems.

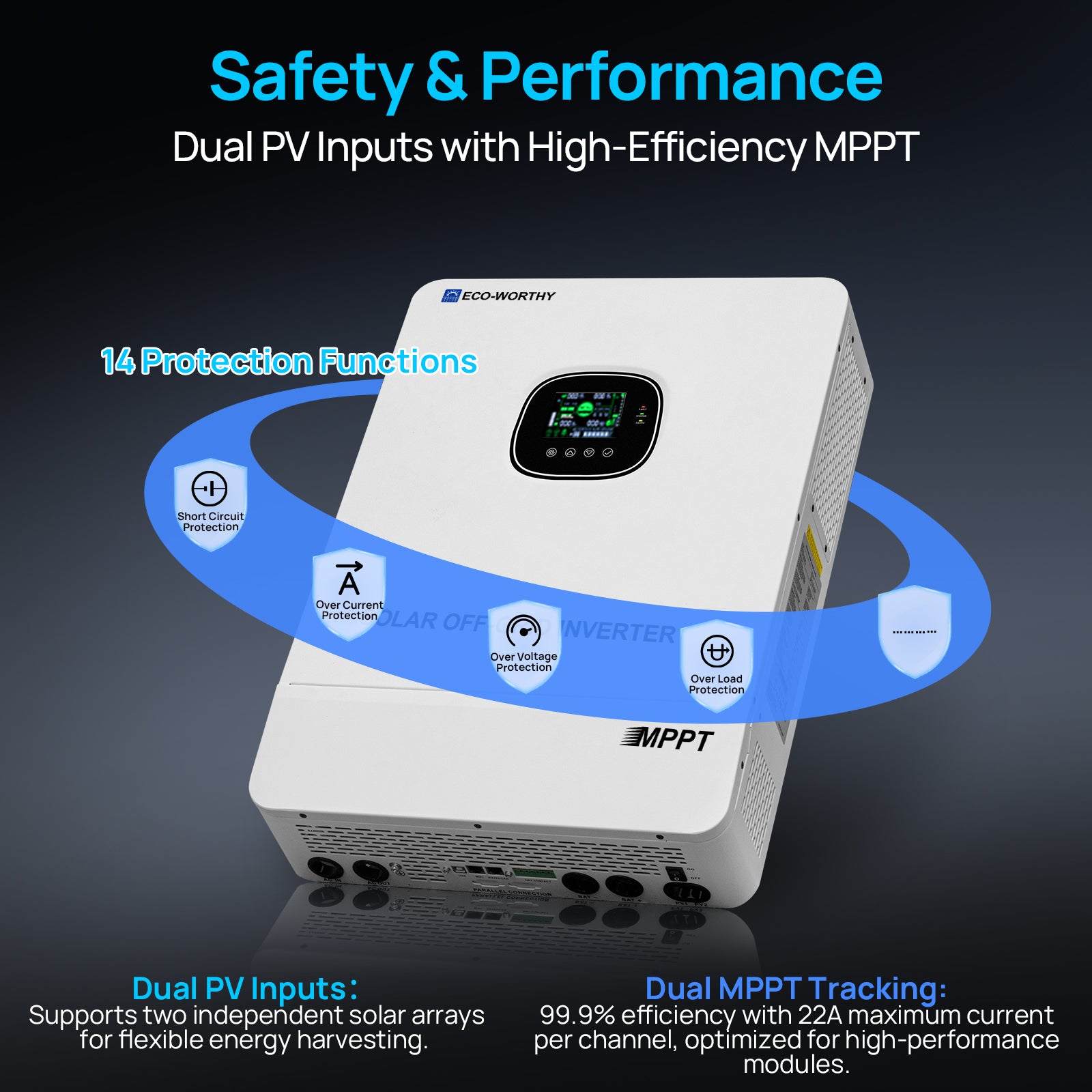

[Easy & Safe Operation] Equipped with an LCD display for real-time monitoring and intelligent protection features including PV input limiting, overvoltage protection, and multiple cooling fans.
Total Price
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of $363.74 with
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery

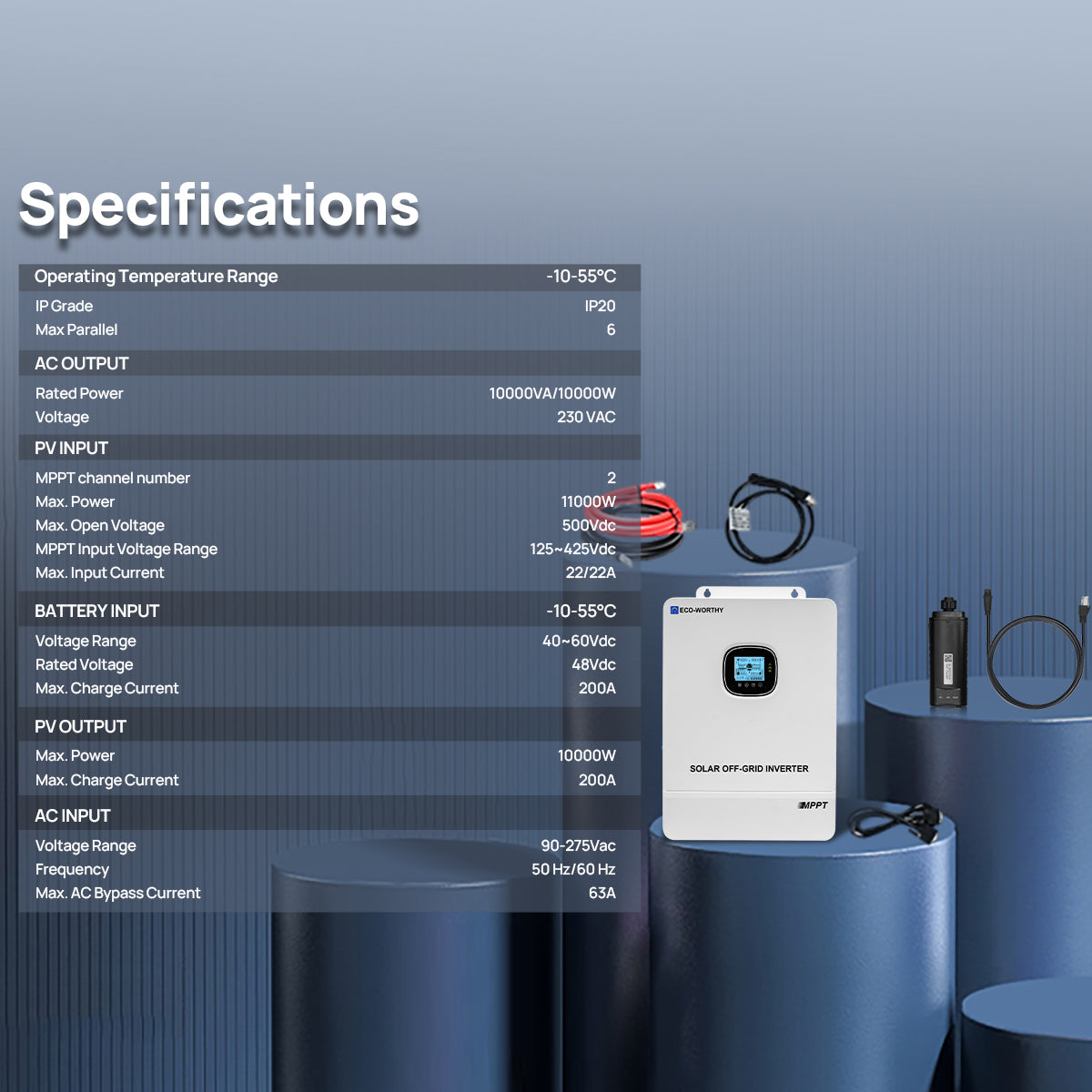

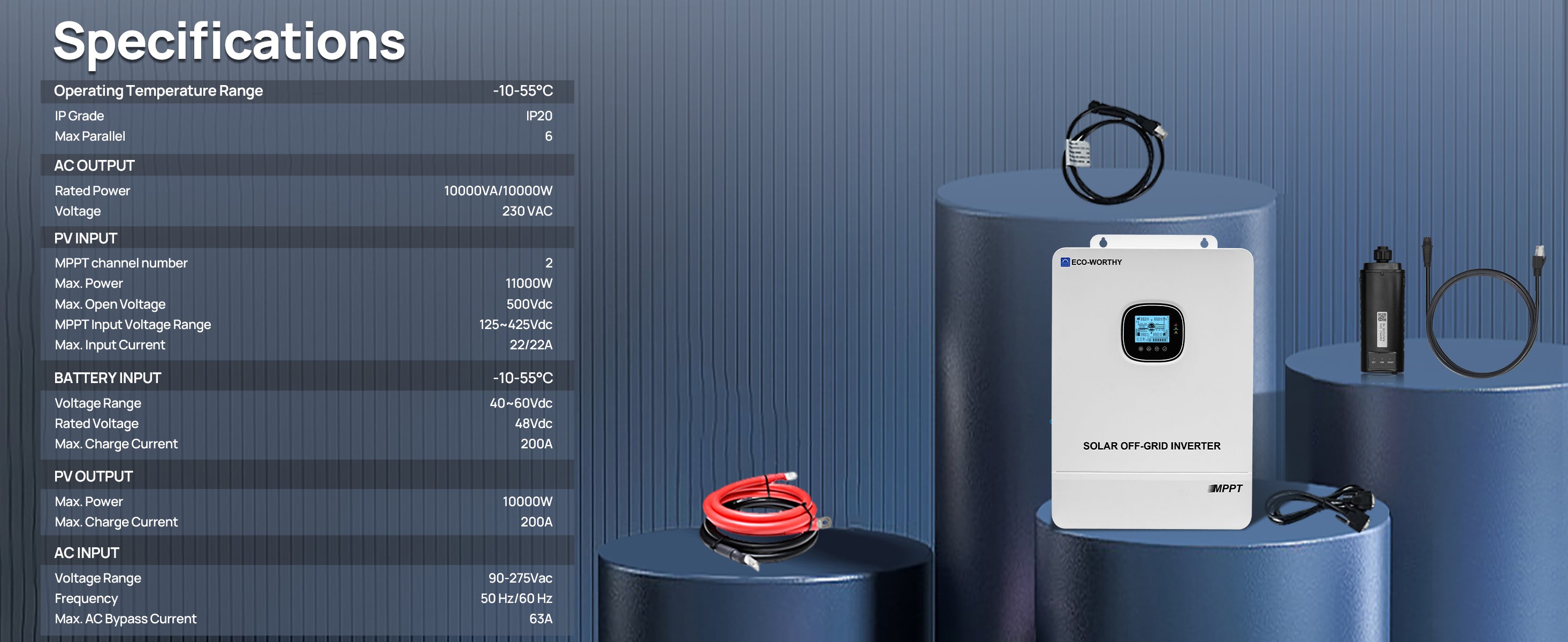

Technical Specifications
Rated Output Power
10000W
Max. Peak Power
20000W

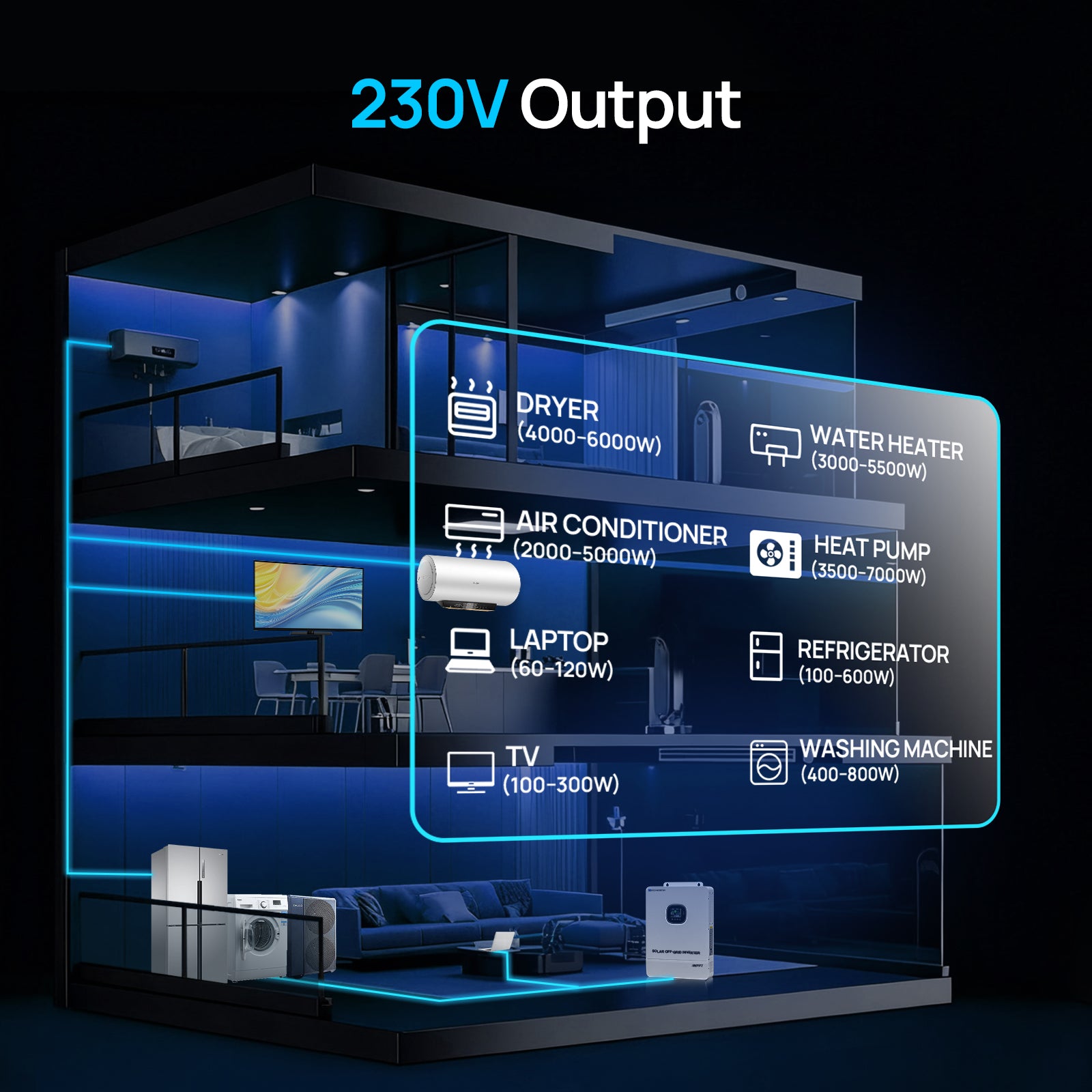

Rated Output Voltage
230Vac（Single phase）
Load Capacity of Motors
6HP
Rated AC Frequency
50/60Hz
Waveform
Pure Sine Wave
Switch Time
10ms（typical）

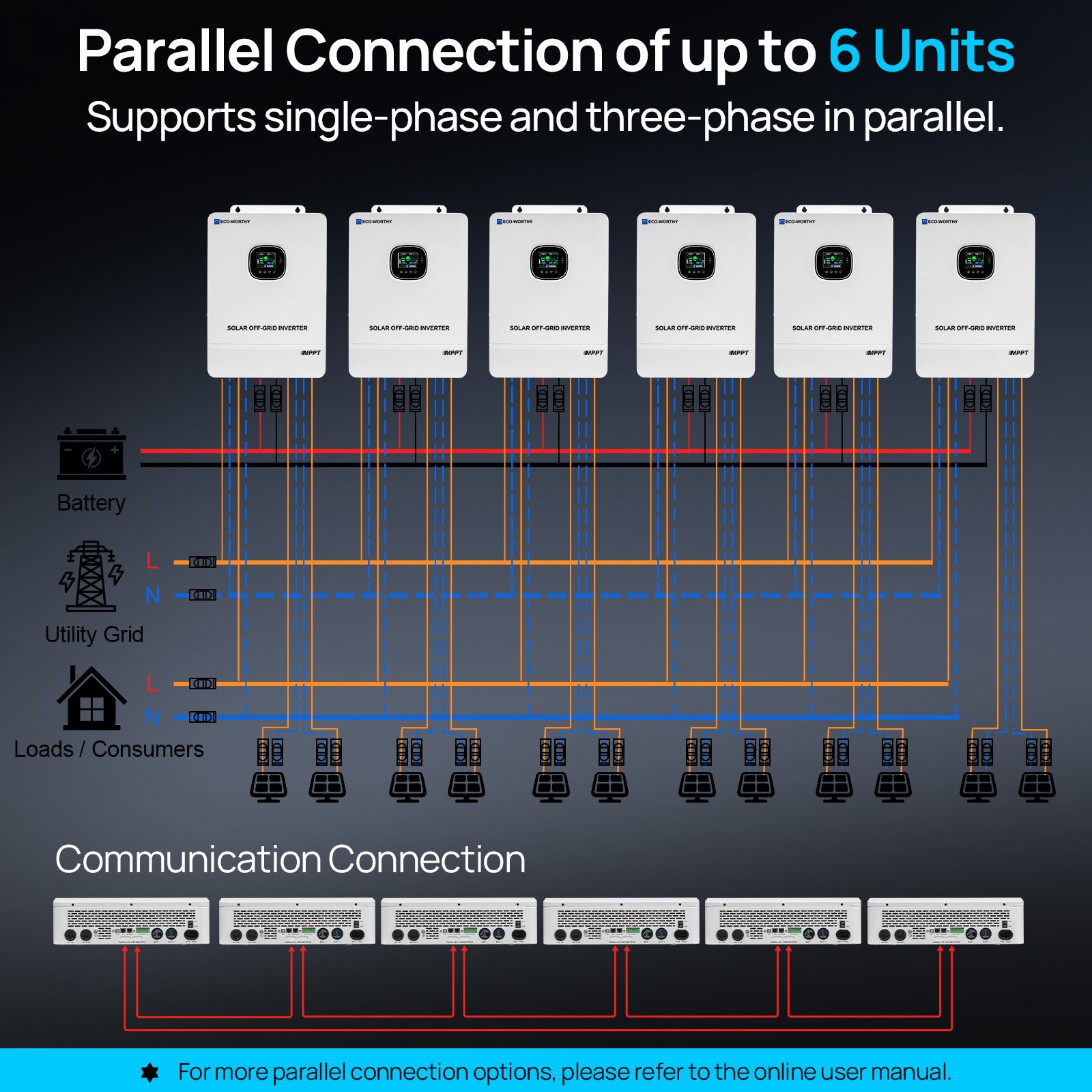

Parallel capacity
1-6 Units
Overload
After triggering the overload protection the inverter will resume output after 3 minutes, 5 consecutive overloads will switch off the output until the inverter is restarted. (102% 125% ±10%: error reported and output switched off after 5s.
Dimensions
620x445x130mm
Weight
27kg
Protection Degree
IP20, Indoor Only
Operating Temperature Range
-10~55℃, >45℃ derated
Noise
<60dB
Cooling Method
Internal Fan
Battery Type

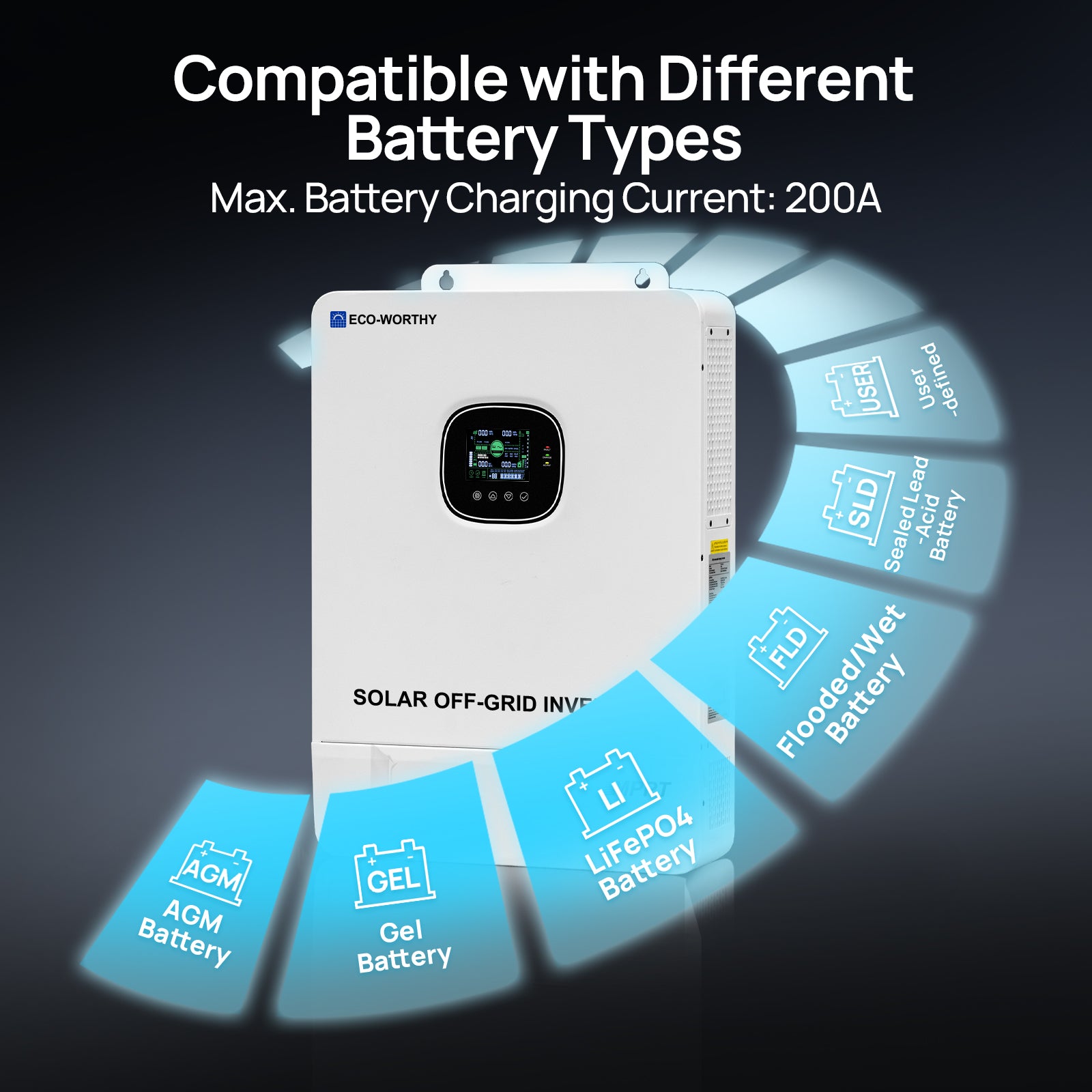

Li-ion / Lead-Acid / User Defined
Rated Battery Voltage
48Vdc
Voltage Range
40-60Vdc
Max. Grid/Generator Charging Current
150A
Max.Hybrid Charging Current
200A
Num. of MPPT Trackers
2
Max.PV array power
5500W
Max. Input current
22A
Max. Voltage of Open Circuit
500Vdc
MPPT Voltage Range
125-425Vdc
Input Voltage Range
90-275Vac
Frequency Range
Bypass Overload Current
63A
MPPT Tracking Efficiency
99.9%
Max. Battery Inverter Efficiency
92%

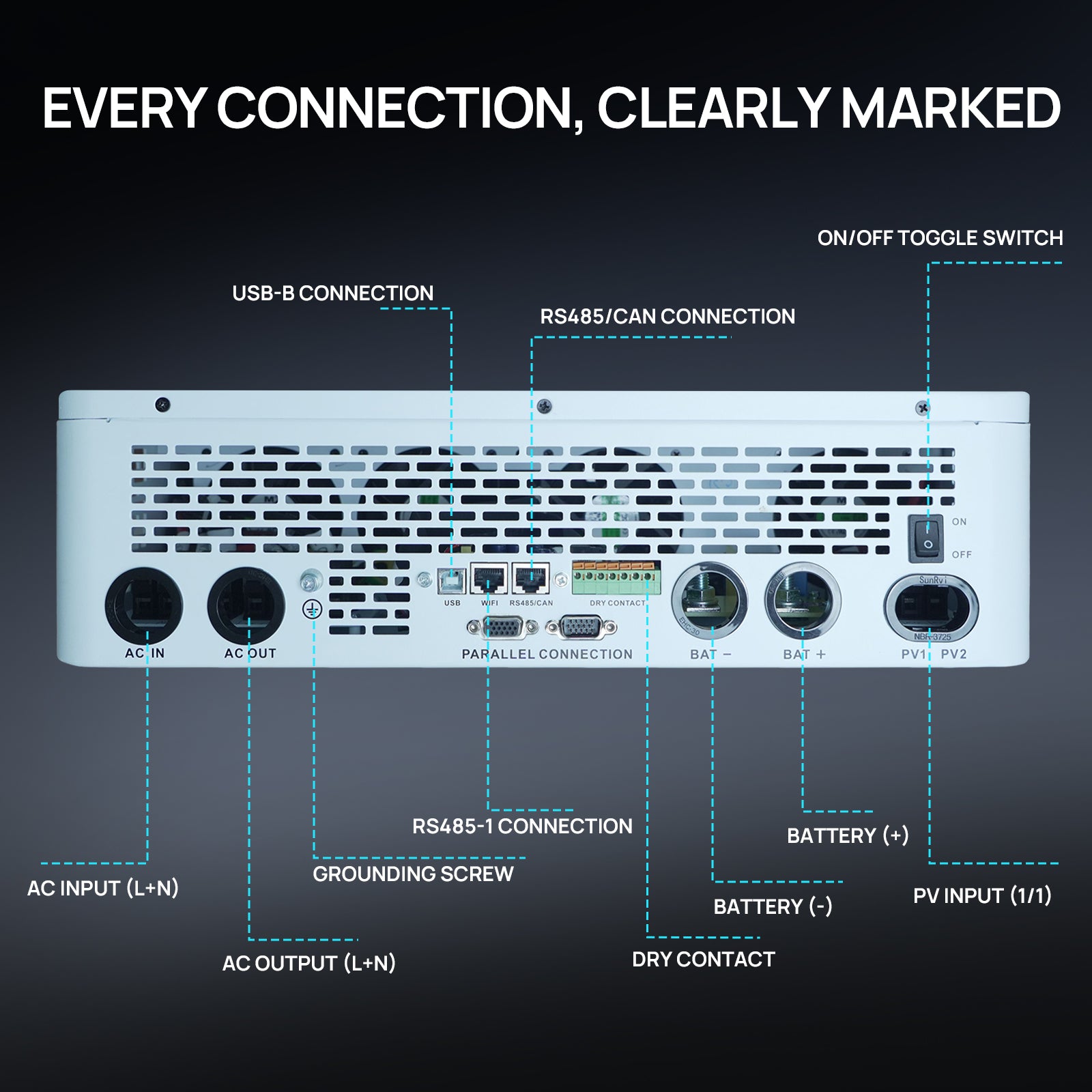

Embedded Interfaces
RS485 / CAN / USB / Dry contact
External Modules
Wi-Fi / GPRS
Eco-Worthy 48V 10000W AIO Inverter Manual
